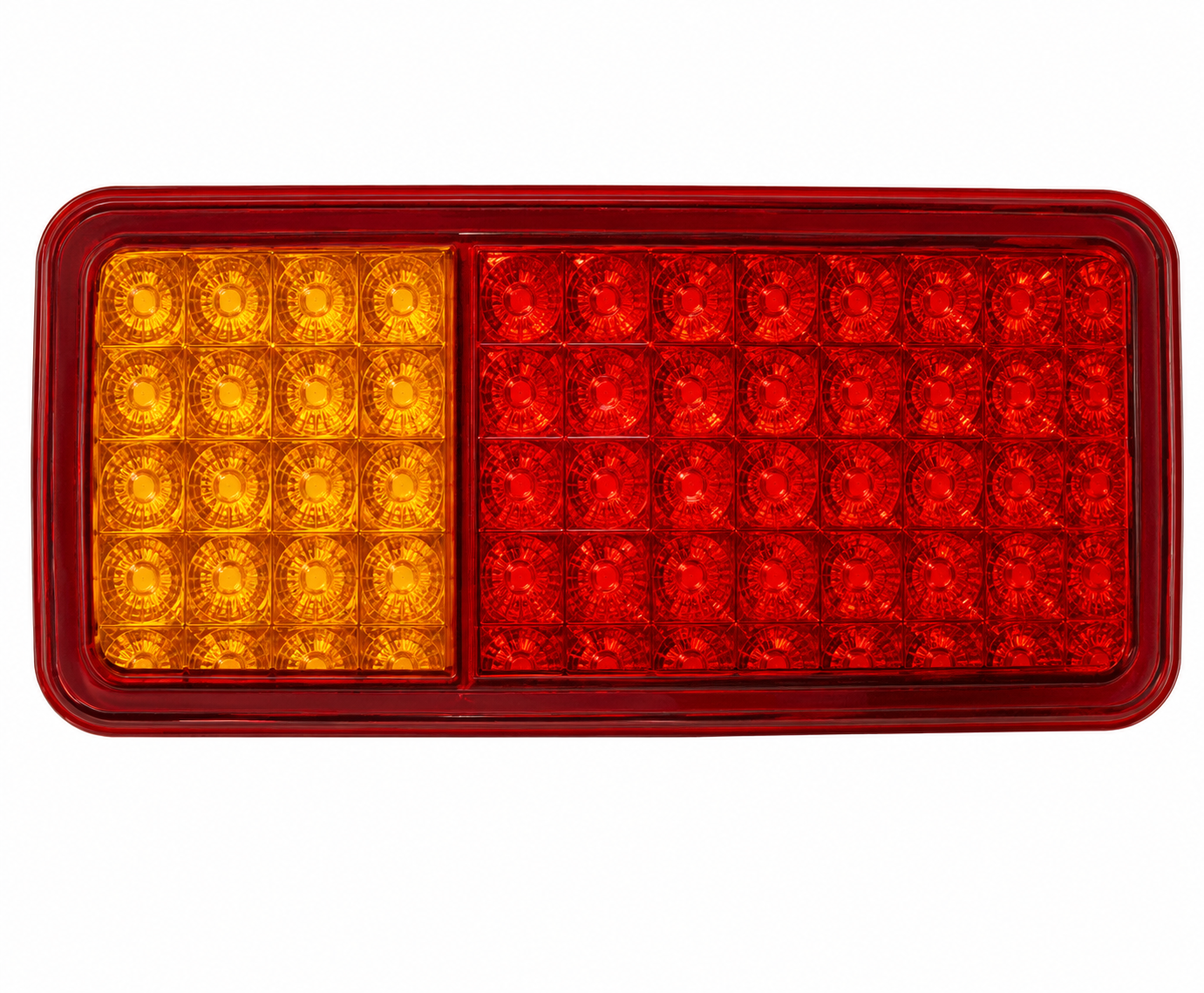

Tail Lamp Small

Tail Lamp Small

Description:
Provides rear lighting functions including tail and turn indication to signal vehicle movement and braking to following traffic. Mounted at the rear of the vehicle to improve visibility and road safety.

Specifications:
Part No: LL07003-C00
Rated Voltage: 24V
Operating Voltage: 20V to 29V DC
Applications: HMV, LMV
Colour: Red and Yellow
Light Source: LED
Protection: Reverse Polarity
Wire Length: 300 mm, 0.5 sq.mm

Current Rating:
Red – 210mA Max
Yellow – 40mA Max
Red Bright – 140mA Max
Red Dim – 0.01mA Max

Luminous (Lux @ 2.5 Feet, Voltage Range 20V–29V):
71–144 lx @ Yellow – BMS(90) @ 24V
80–150 lx @ Red – BMS(168) @ 24V
80–139 lx @ Red Bright – BMS(180) @ 24V
10–15 lx @ Red Dim – BMS(14) @ 24V
