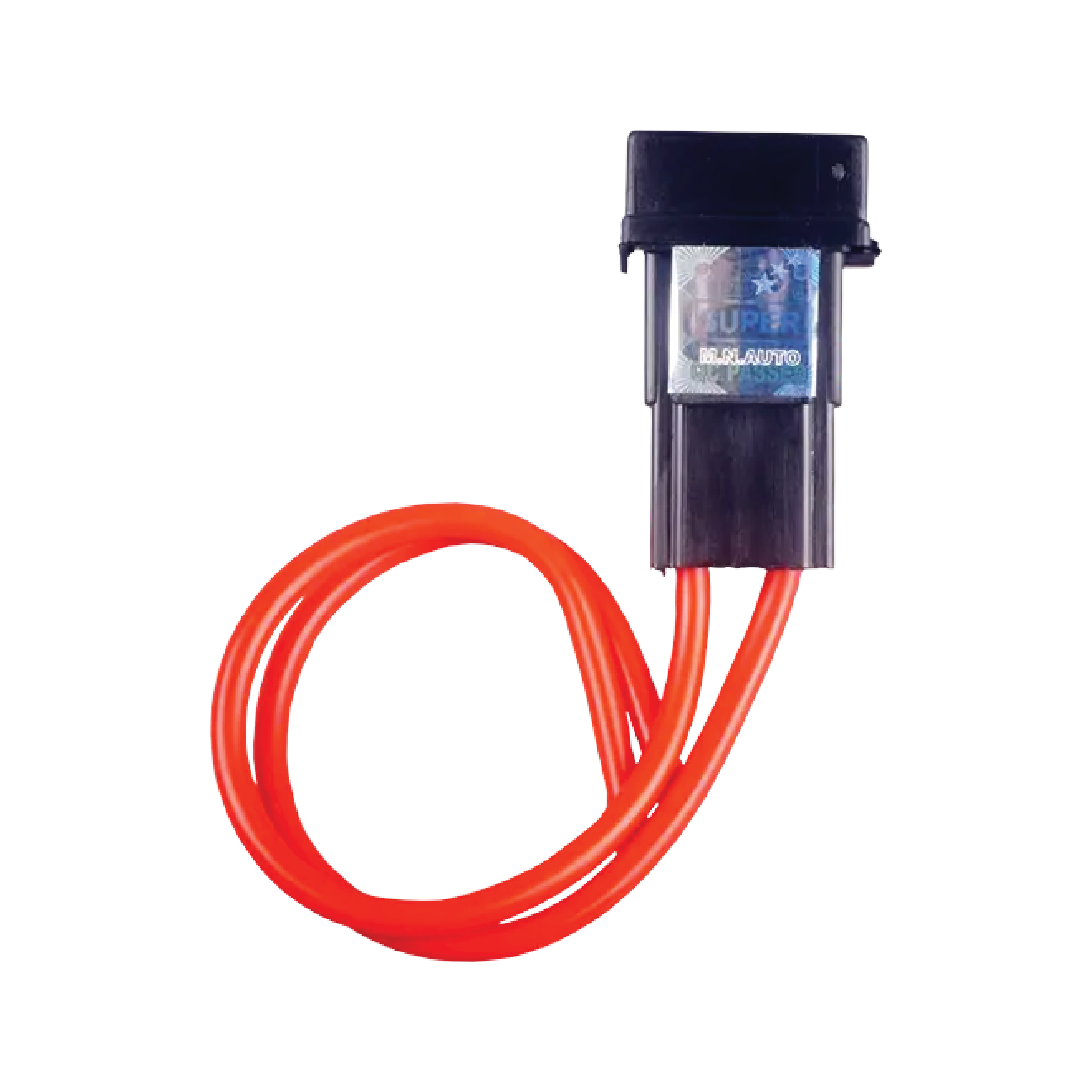

Blade Fuse Holders (Plastic)
Specifications
- Product Names : Blade Fuse Holder Ordinary (6 mm)
- Product No :1708
- Wire Size :2.5 sq.mm
- Wire Colour :Red
- Wire Length ‘L’ :180mm
- Blade Fuse for Fuse Holder: 30A
- Copper wire crimping with terminal Load :>10 Kgf
- Weight :20.8 g

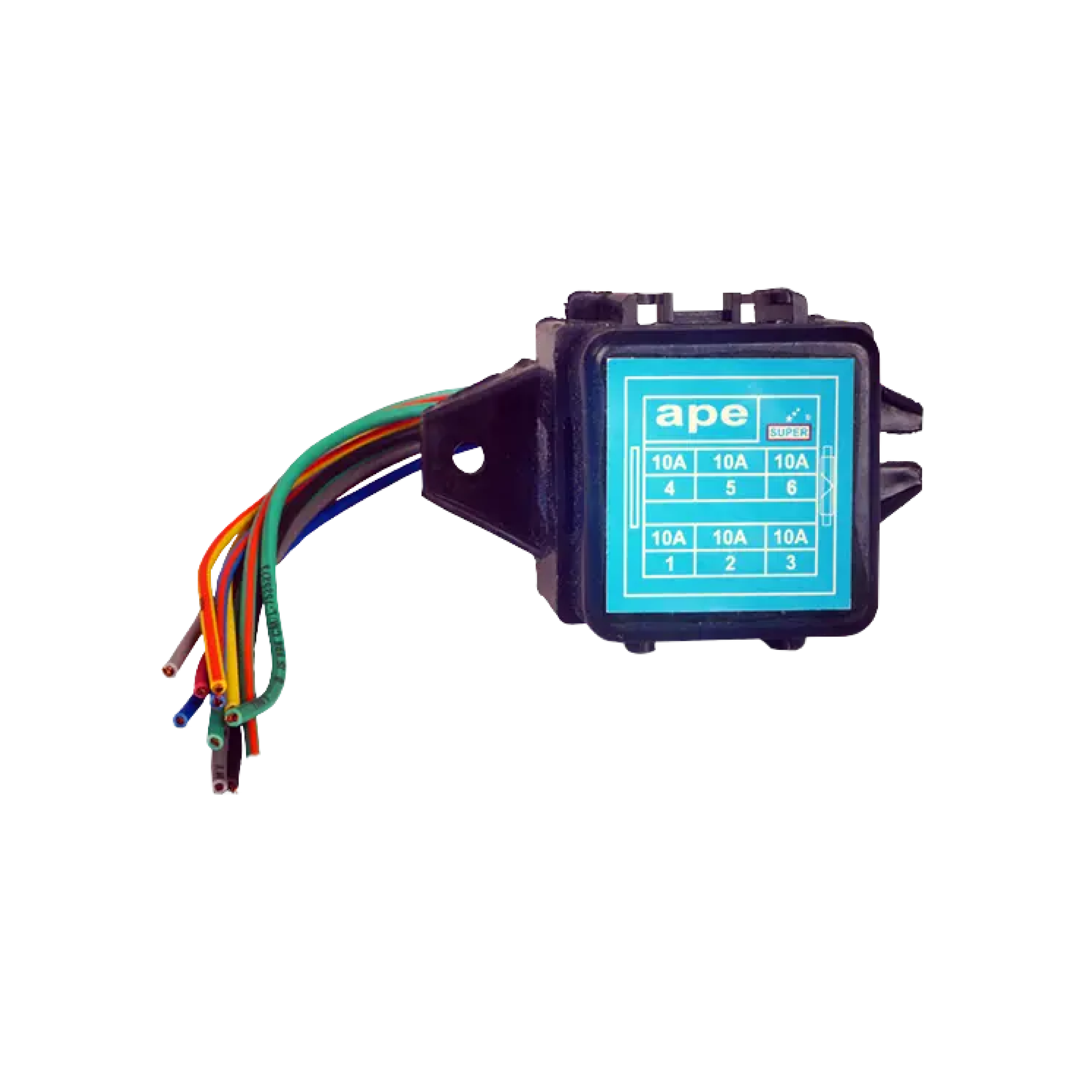

Fuse Box AP
Specifications
- Product No :1719
- Operating Voltage : 10V to 29V
- Wire Specification :1.5 & 1.0 Sq.mm
- Wire Length :180mm
- Weight :94g

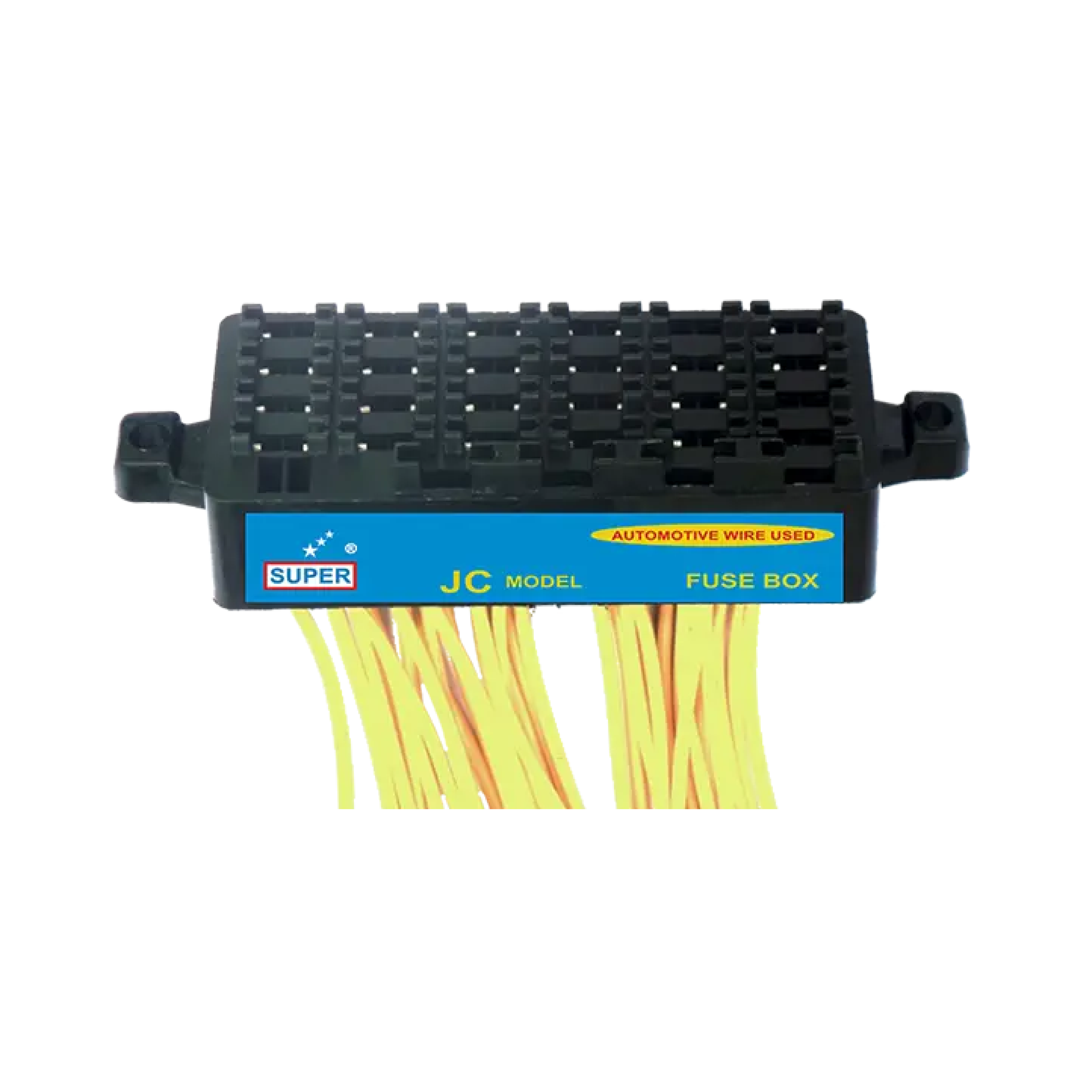

Fuse Box JCB
Specifications
- Product No :1721
- Operating Voltage : 10V to 14.5V
- Terminal Used : 8.2 Male
- Colour : Yellow
- Wire Length : 180 mm
- Wire Size : 1.5 Sq.mm
- Weight :294 g

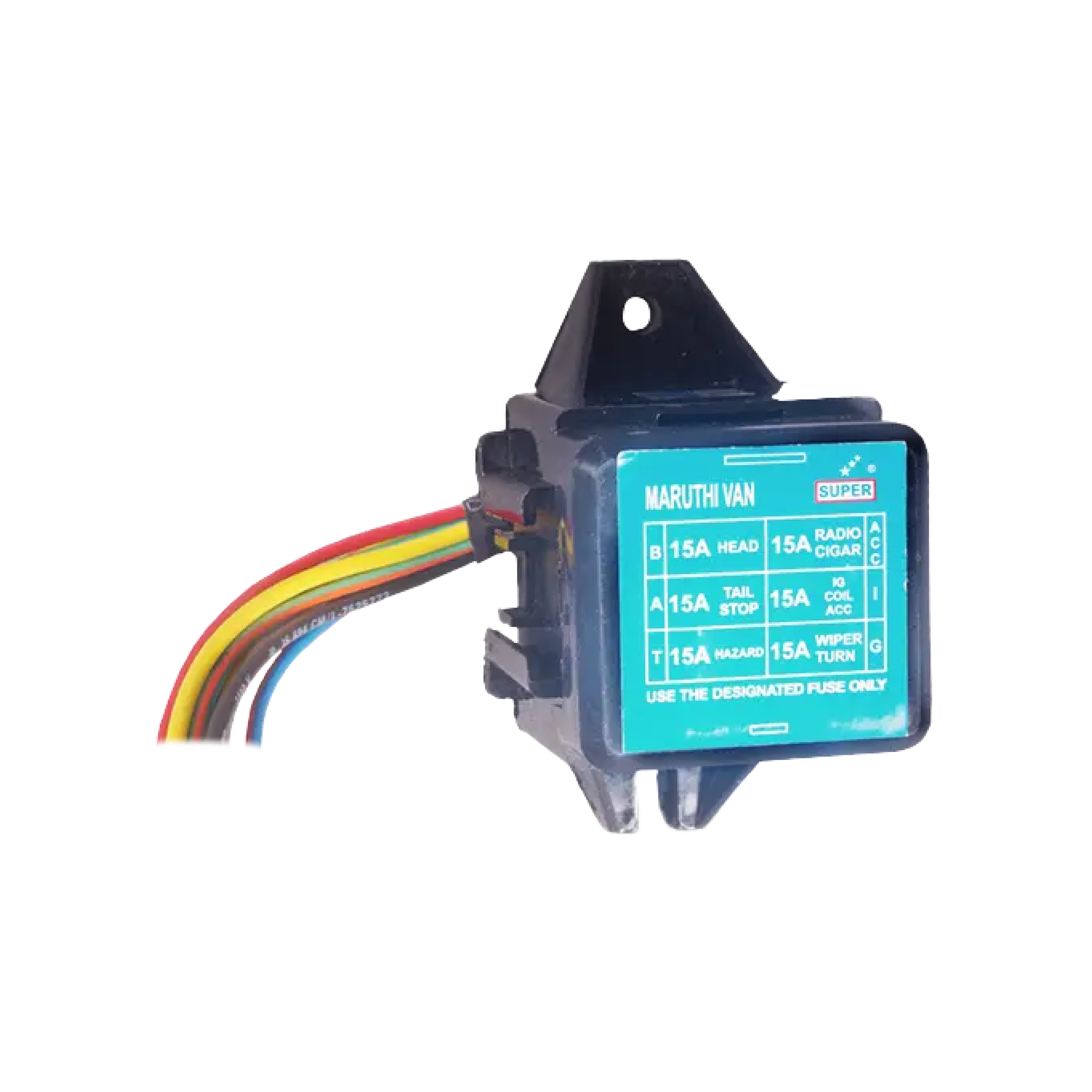

Fuse Box MV
Specifications
- Product No :1718
- Operating Voltage : 10V to 29V
- Wire Specification :1.5 & 1.0 Sq.mm
- Wire Length : 180 mm
- Weight :80g

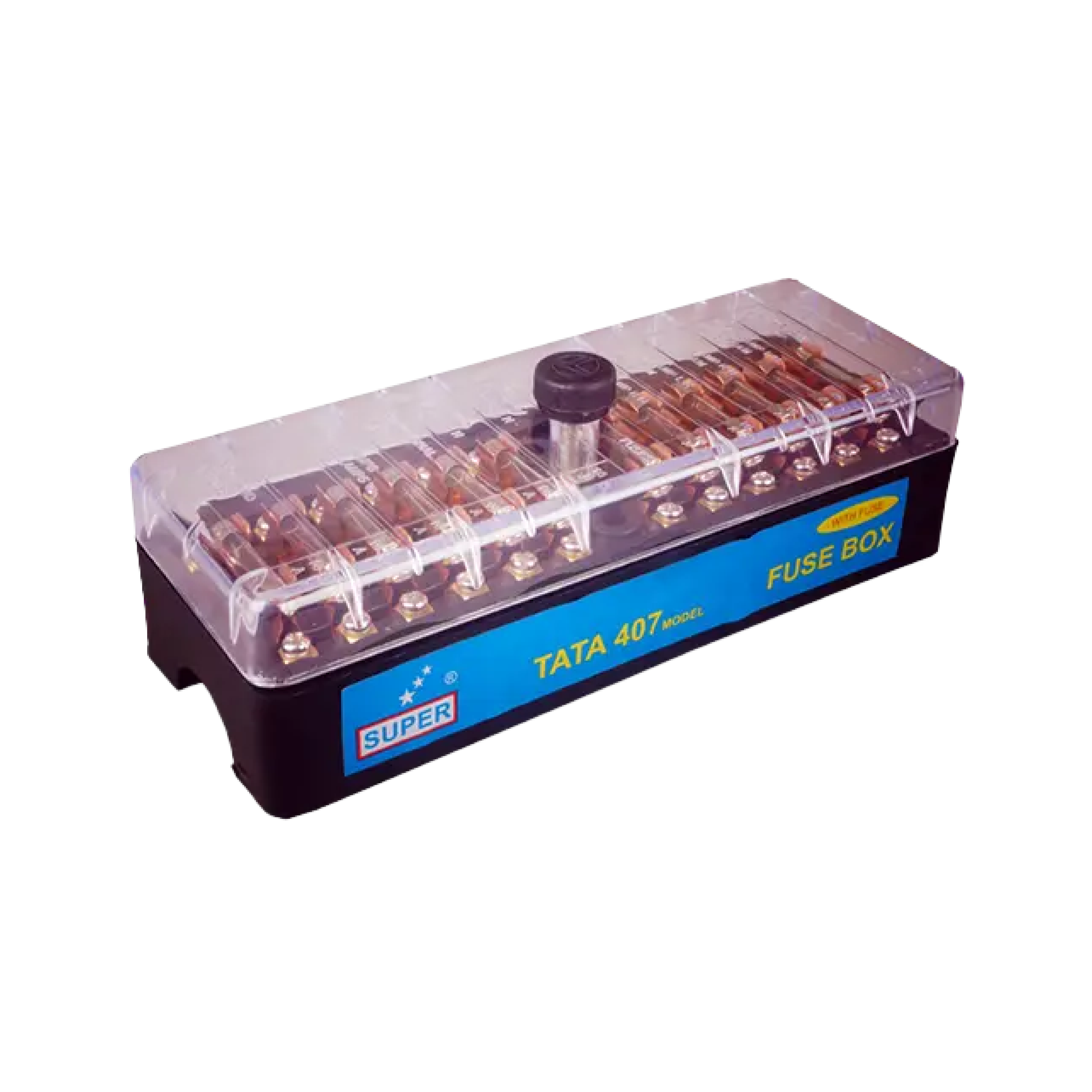

Fuse Box TA 407
Specifications
- Product No : 1720
- Operating Voltage :10V to 29V
- Glass Fuse Used :10A
- Weight :470g

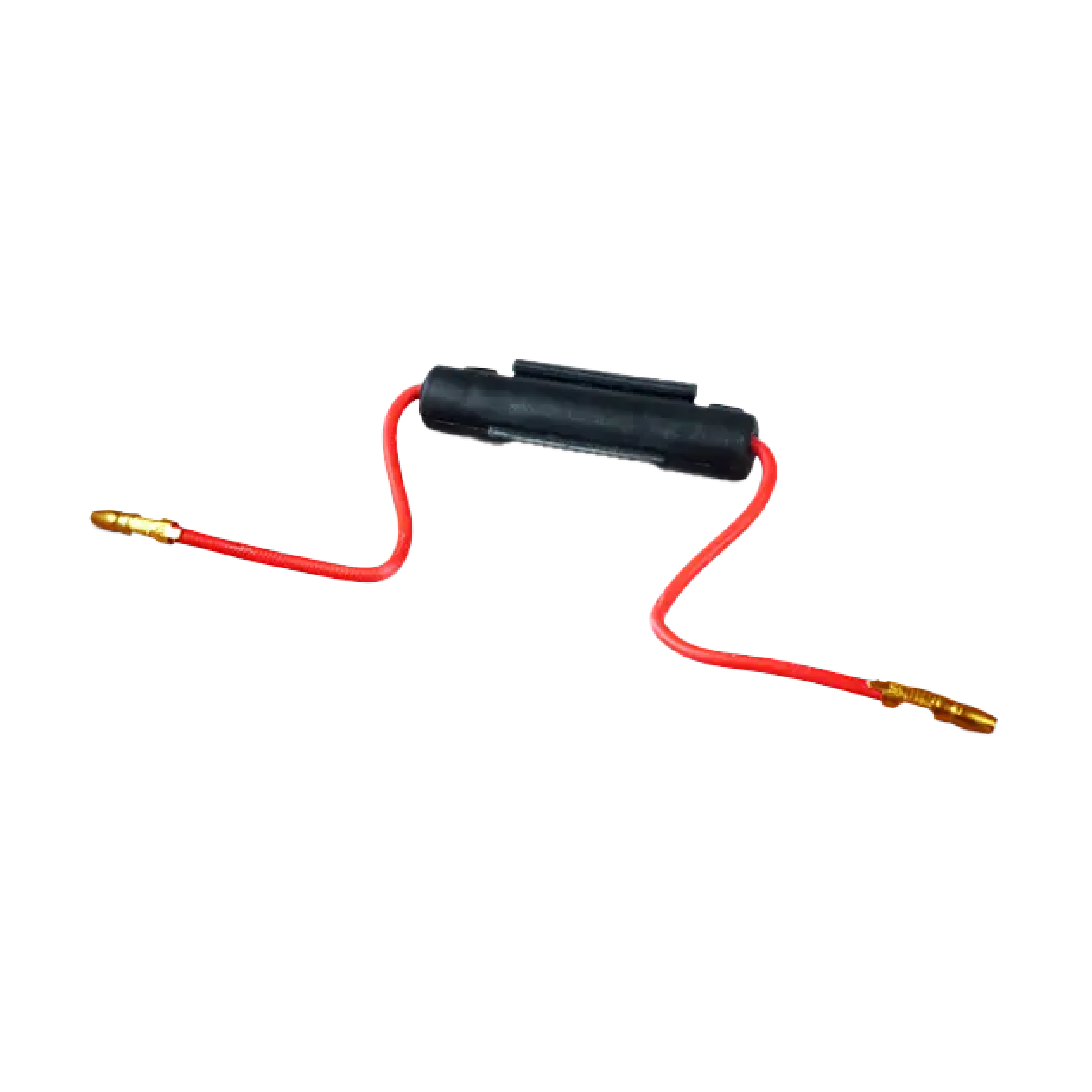

Fuse Holder 2 Wheeler
Specifications
- Product No :1712
- Glass Fuse : 15A Used
- Terminal Used : 104 C Male & FT 105
- Colour : Black
- Wire Length : 100mm Each side
- Wire Size : 1 Sq.mm
- Weight :9 g

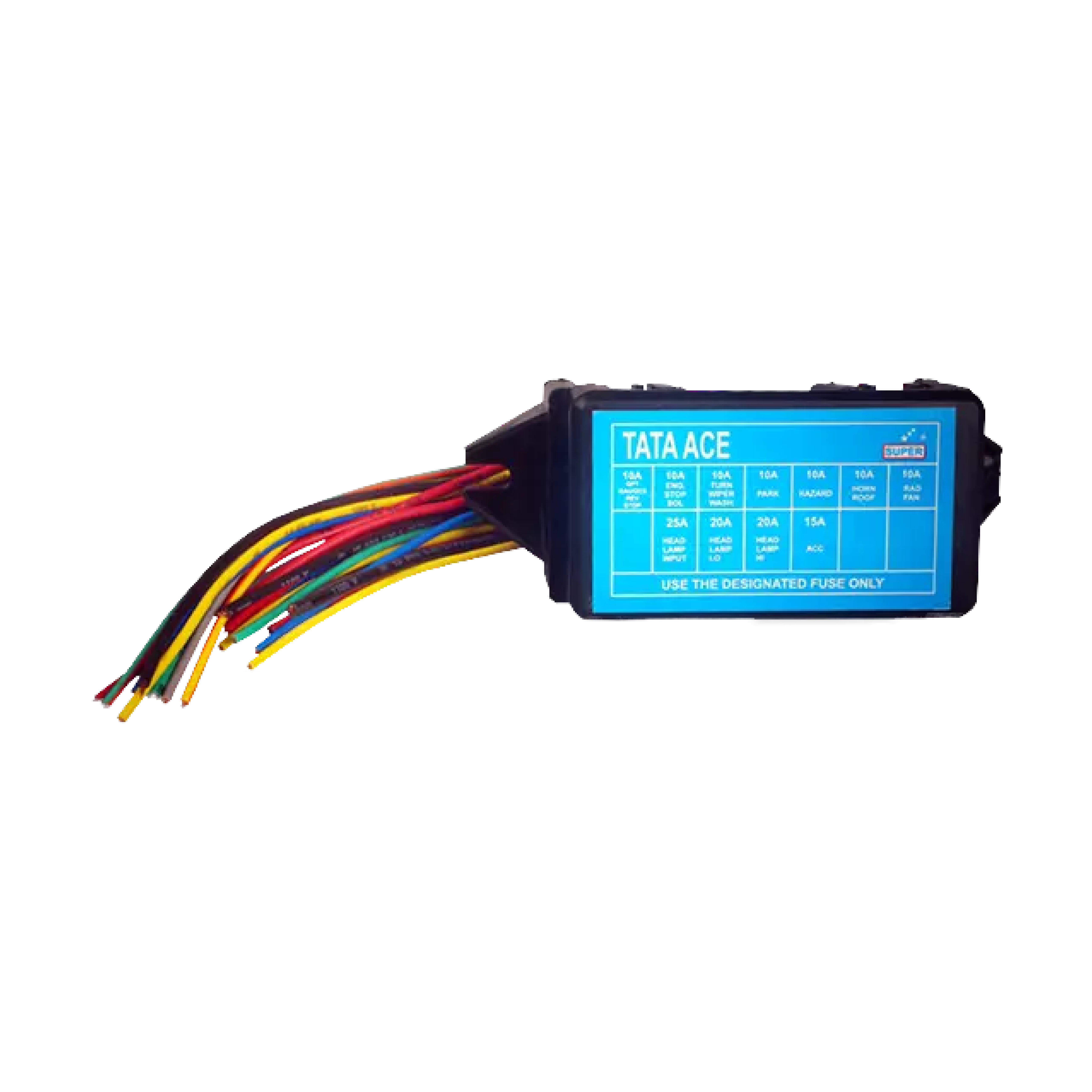

Fuse Holder AE
Specifications
- Product No : 1716
- Operating Voltage :10V to 29V
- Wire Length : 180 Mm
- Wire Specification : 2.5,1.5 & 1.0 sq.mm
- Weight :191g

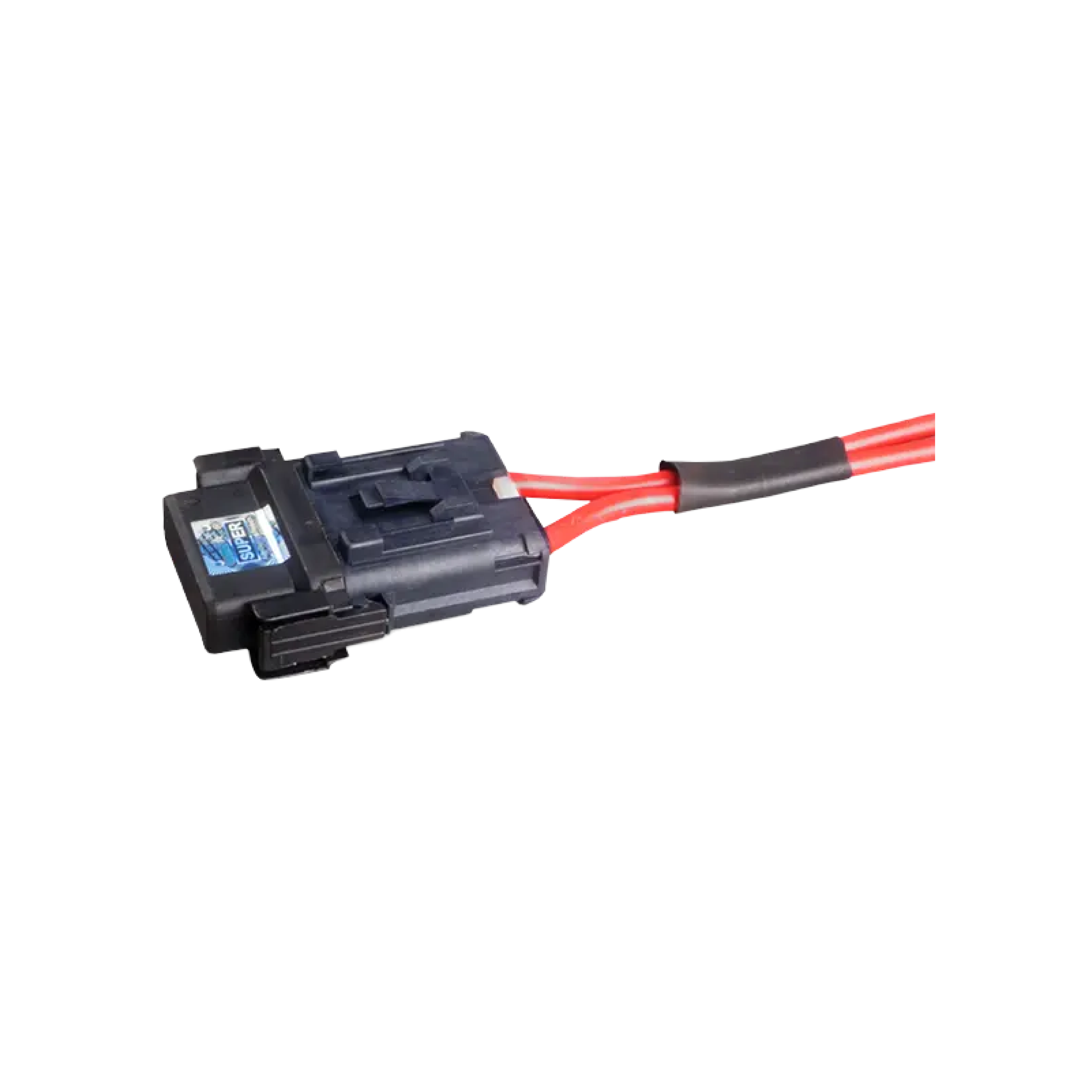

Fuse Holder HD
Specifications
- Product No : 1715
- Wire Size : 4 Sq.mm
- Wire Length : 180 Mm
- Colour : Red
- Wire Overall Dia : 5mm
- Output Current :70 Amps

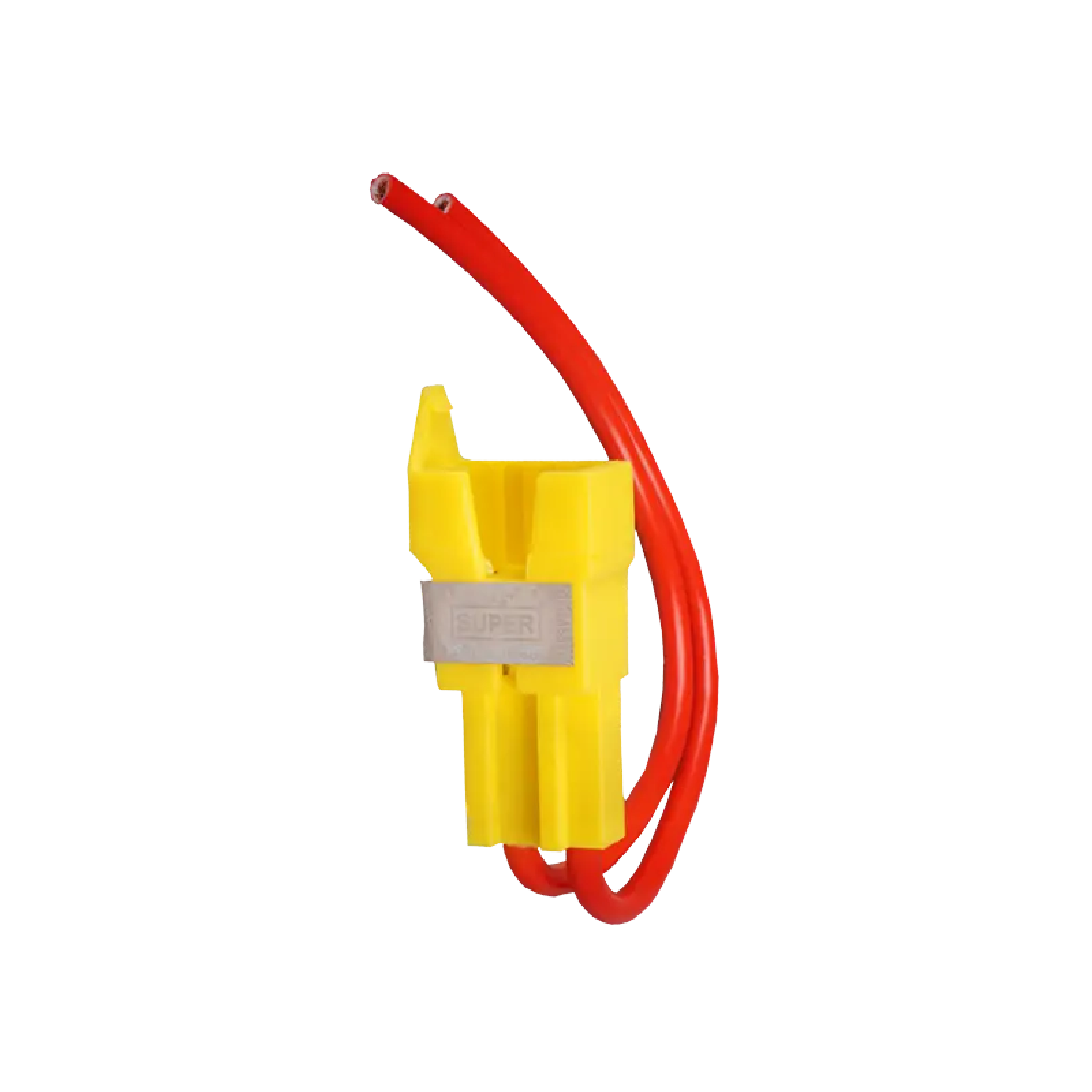

Fuse Holder TA
Specifications
- Product No :1722
- Operating Voltage : 10V to 14.5V
- Terminal Used : 8.2 Male
- Colour : Red
- Wire Length : 160 mm
- Wire Size : 4 Sq.mm
- Weight :17.9 g
3 Pin Musical Flashers
Specifications
- Product No : 1707
- Operating Voltage : 10V – 30V
- Blade Fuse :30A
- Wire Length : 180mm
- Wire Size :2.5sq.mm
- Weight :33g
Specifications
- Product No : 1709
- Operating Voltage : 10V – 30V
- Blade Fuse :30A
- Wire Length : 180mm
- Wire Size :4sq.mm
- Weight :41g
