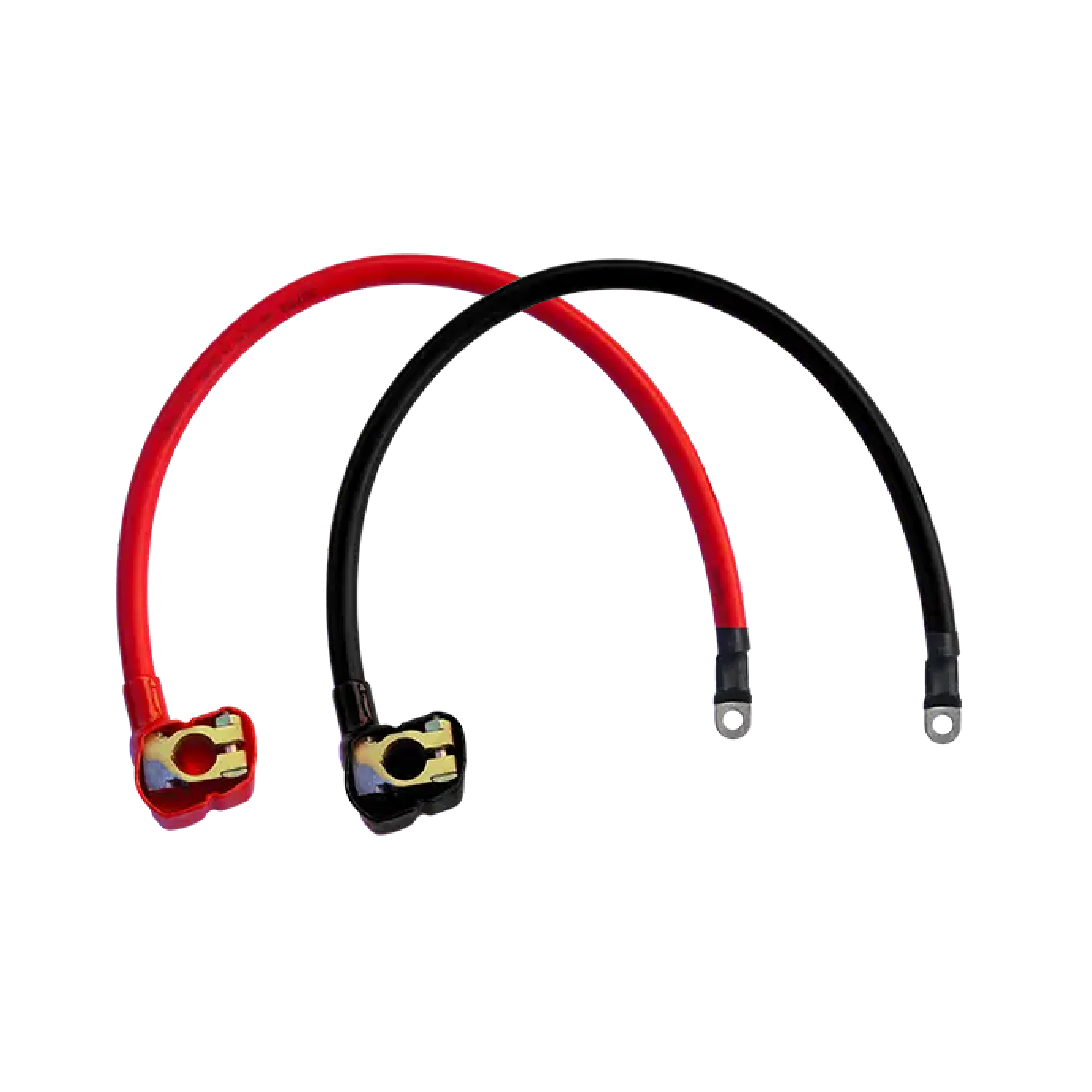

Battery Cable Assembly with Terminal-to-Lug(TL)
| S.No | Parameters | Specifications | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Product Name | Battery Cable Assembly – Terminal To Lug(TL) | ||||||||
| 02 | Variants | Positive & Negative | ||||||||
| 03 | Available Colours | Black & Red | ||||||||
| 04 | Sq.mm & No of Strands | 16 Sq.mm & 220 | ||||||||
| 05 | Wire Length (L) inch | 12″ | 18″ | 24″ | 36″ | 42″ | 48″ | 54″ | 60″ | 72″ |
| 06 | Wire Length (L) mm | 304.8 | 457.2 | 609.6 | 914.4 | 1068.8 | 1219.2 | 1371.6 | 1524 | 1828.8 |
| 07 | Weight (W) in Grams | 169 g | 219 g | 260 g | 453 g | 407 g | 447 g | 505 g | 546 g | 656 g |
Battery Cable Assembly with Terminal-to-Terminal(DL)
| S.No | Parameters | Specifications | ||
|---|---|---|---|---|
| 01 | Product Name | Battery Cable Assembly – Double Terminal (DT) | ||
| 02 | Variants | Positive & Negative | ||
| 03 | Available Colours | Black & Red | ||
| 04 | Sq.mm & No of Strands | 16 Sq.mm & 220 | ||
| 04 | Wire Length (L) inch | 12″ | 15″ | 18″ |
| 05 | Wire Length (L) mm | 304.8 | 381 | 457.2 |
| 06 | Weight (Wt) in Grams | 204 g | 238 g | 258 g |
